3-Axis four-lens Inertial Stabilized camera Gimbal

Application scenarios:

All-weather urban security and counter-terrorism monitoring, emergency relief and disaster response, industrial and infrastructure inspection, power and energy facility maintenance, border patrol, military terrain reconnaissance and long-range target reconnaissance, target guidance and strike.

Send Inquiry Live Chat
  • Product Details
  • Main Features
  • Technical Parameters
  • FAQ
  • Inquiry

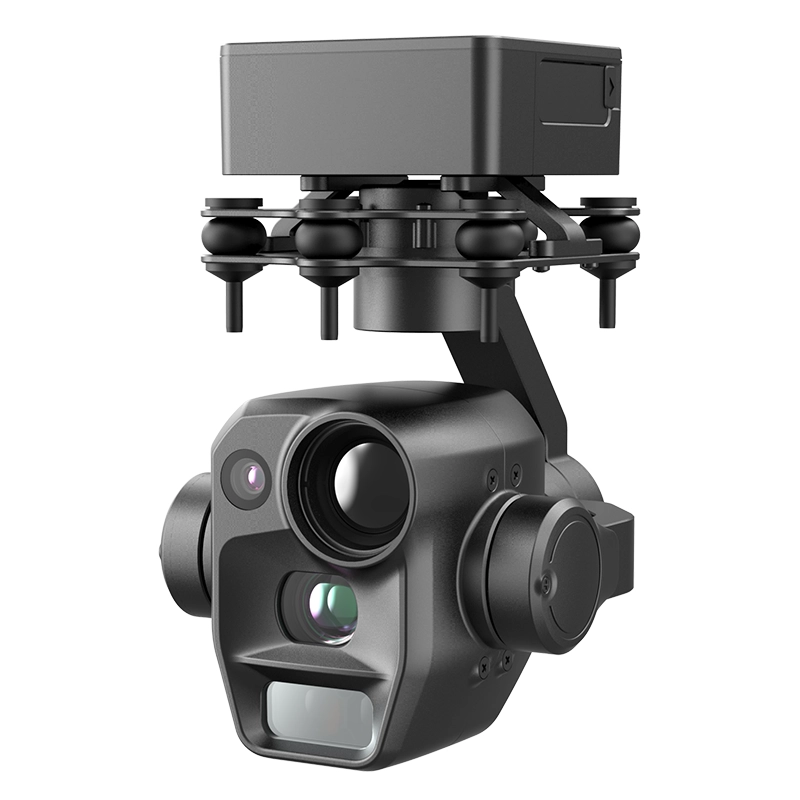

Three-axis four-lens Inertial Stabilized camera Gimbal

This is a miniature three-axis four-sensor inertial stabilized gimbal, integrating a long-wave uncooled infrared camera, a 48-megapixel high-definition visible light wide-angle camera, a 48-megapixel continuous zoom visible light camera, a laser rangefinder, and a gyroscopic stabilization platform. It offers a long observation range for personnel and vehicles, provides real-time video transmission in both visible light and infrared, and has all-weather day and night observation and target detection capabilities, as well as target positioning capabilities.

Main Features:

  • Features autonomous target recognition of objects such as people and vehicles.
  • Features manual target tracking box size setting and target locking capabilities.
  • Features target detection and tracking prediction capabilities.
  • Supports visible light or infrared target tracking.
ModelMACHINE-E2
PAN&TILT
Image Stabilization Accuracy≤0.02°
Framework typeThree-axis mechanical gyroscope image stabilization
Scope of framework designOrientation: -110° to +110°, Roll: -45° to +45°, Pitch: -120° to +90°
Frame angle measurement threshold2mrad
Controllable rotation rangeAzimuth: -90° to +90°, Elevation: -90° to +30°
Infrared camera parameters
Detector response band8-12 micrometers, long wave
Pixel size12um
Number of detector pixels640×512
Optical focal length25mm
Field of view17.6°×14.0°（±5%,1080P）
Infrared imaging resolution640×512
Infrared video resolution640×512@30fps
48Megapixel High-definition wide-angle visible light camera parameters
Visible light sensor1/2.5" COMS
Lens Focus4.7mm
Field of view68.4°×51.3°（±5%,1080P）
Photo resolution8000×6000、3840×2160、1920×1080
Video resolution3840×2160@30fps，1920×1080@30fps
48Megapixel Parameters of a continuous zoom visible light camera
Visible light sensor1/2.5" CMOS
Focus15.3～49.7mm
ViewAngle3.43°～22.2°（±5%,1080P）
Photo resolution8000×6000、3840×2160、1920×1080
Video resolution3840×2160@30fps，1920×1080@30fps
Digital Zoom8X
Laser rangefinder
Security RequirementsClass 1 laser
Laser wavelength905nm
Laser ranging range5m—1500m
Distance measurement accuracy±1m
Measurement frequency≤1Hz
Tracker
Functions
  • Features autonomous target recognition of objects such as people and vehicles.
  • Features manual target tracking box size setting and target locking capabilities.
  • Features target detection and tracking prediction capabilities.
  • Supports visible light or infrared target tracking.
System metrics
Size81.0mm（L）×90.0mm（W）×113.0mm（H）
WeightThree-axis gimbal part: 280g ± 5g;

Servo controller + tracker (required): 35g ± 2g;

Control box (optional): 20g.

Hybrid zoom120X
Operating rangeUnder daytime conditions with visibility of at least 8km, the target recognition distance for adults is greater than 1500m.

Under nighttime conditions with visibility of at least 8km, relative humidity not exceeding 60%, and a background temperature difference of at least 5K, the target recognition distance for adults is greater than 300m.

Target positioningCEP 5 Meters
Operating temperature-10℃～+55℃
Storage temperature-45℃～+60℃
Rain testAble to function normally in light rain conditions.
Power supply and power consumptionDC10.8V～DC26.4V@3A, ≤12W
Output interfaceVideo: Network, HDMI;

Control: TTL serial port, Network, SBUS;

Storage: ≤128G Micro SD card

Q1: How to buy them?
A:We have no online store, please contact with us by email or whatsapp to buy directly

Q2: I have no import license, can i import it ?
A: Please contact with us, we will check how to assist you to import successfully.

Q3: What’s your payment term,and What currency do you accept?
A: We accept TT or Western union or Paypal. We accept CNY,USD,EUR etc.

Q4: How to ship them?
A: It can ship by Express , such as DHL, Fedex, UPS etc, and also can ship by Sea
